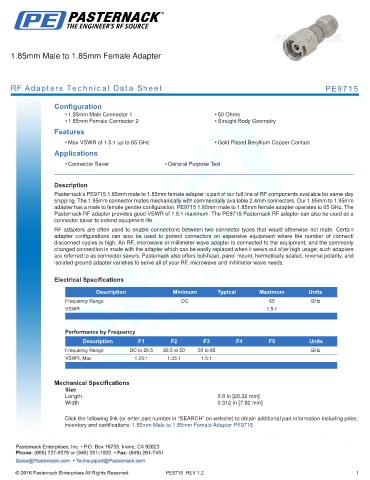

1.85mm Male to 1.85mm Female Adapter
RF Adapters Technical Data Sheet PE9715
Configuration
• 1.85mm Male Connector 1 • 50 Ohms
• 1.85mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.5:1 up to 65 GHz • Gold Plated Beryllium Copper Contact
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9715 1.85mm male to 1.85mm female adapter is part of our full line of RF components available for same-day
shipping. The 1.85mm connector mates mechanically with commercially available 2.4mm connectors. Our 1.85mm to 1.85mm
adapter has a male to female gender configuration. PE9715 1.85mm male to 1.85mm female adapter operates to 65 GHz. The
Pasternack RF adapter provides good VSWR of 1.5:1 maximum. The PE9715 Pasternack RF adapter can also be used as a
connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 65 GHz
VSWR 1.5:1
. .
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 26.5 26.5 to 50 50 to 65 GHz
VSWR, Max 1.25:1 1.35:1 1.5:1
.
Mechanical Specifications
Size
Length 0.8 in [20.32 mm]
Width 0.312 in [7.92 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 1.85mm Female Adapter PE9715
PE9715 REV 1.2 1
