1.85mm Male to 1.85mm Female Adapter

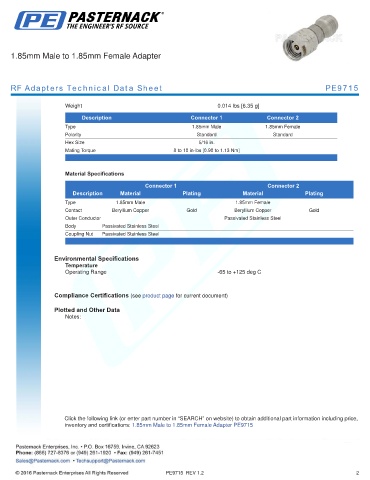

RF Adapters Technical Data Sheet PE9715

Weight 0.014 lbs [6.35 g]
.
Description Connector 1 Connector 2
Type 1.85mm Male 1.85mm Female
Polarity Standard Standard
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Male 1.85mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 1.85mm Female Adapter PE9715

PE9715 REV 1.2 2
