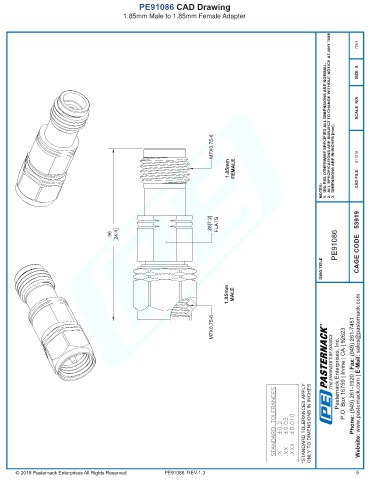

PE91086 CAD Drawing
1.85mm Male to 1.85mm Female Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

SIZE A

SCALE N/A

M7X0.75-6 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 011218

1.85mm FEMALE 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE

NOTES:

.28[7.2] FLATS

.96 24.4
PE91086 CAGE CODE 53919

DWG TITLE

1.85mm MALE

M7X0.75-6 R
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.010
.XX ±0.03
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91086 REV 1.3 5
