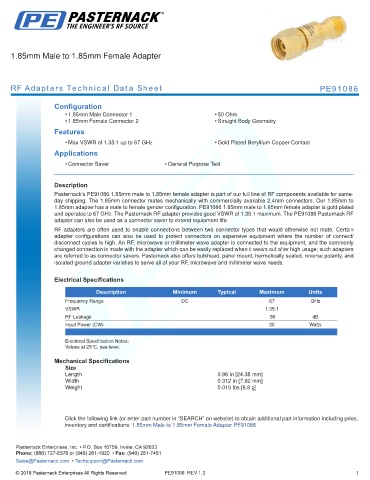

1.85mm Male to 1.85mm Female Adapter

RF Adapters Technical Data Sheet PE91086

Configuration
• 1.85mm Male Connector 1 • 50 Ohm
• 1.85mm Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.35:1 up to 67 GHz • Gold Plated Beryllium Copper Contact
Applications

• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE91086 1.85mm male to 1.85mm female adapter is part of our full line of RF components available for same-
day shipping. The 1.85mm connector mates mechanically with commercially available 2.4mm connectors. Our 1.85mm to
1.85mm adapter has a male to female gender configuration. PE91086 1.85mm male to 1.85mm female adapter is gold plated
and operates to 67 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. The PE91086 Pasternack RF
adapter can also be used as a connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 67 GHz
VSWR 1.35:1
RF Leakage -90 dB
Input Power (CW) 20 Watts
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.96 in [24.38 mm]
Width 0.312 in [7.92 mm]
Weight 0.015 lbs [6.8 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 1.85mm Female Adapter PE91086
-
