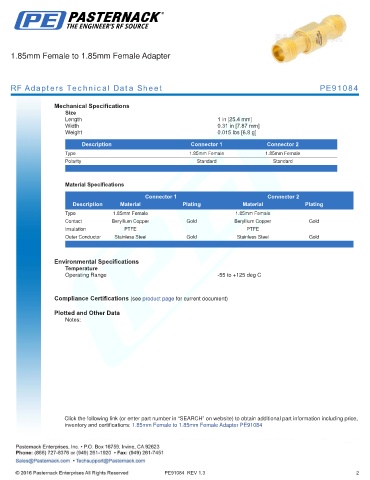

1.85mm Female to 1.85mm Female Adapter
RF Adapters Technical Data Sheet PE91084
Mechanical Specifications
Size
Length 1 in [25.4 mm]
Width 0.31 in [7.87 mm]
Weight 0.015 lbs [6.8 g]
.
Description Connector 1 Connector 2
Type 1.85mm Female 1.85mm Female
Polarity Standard Standard
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Female 1.85mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Stainless Steel Gold Stainless Steel Gold
. .
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to 1.85mm Female Adapter PE91084
