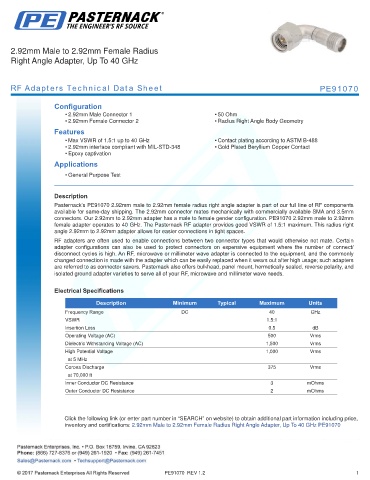

2.92mm Male to 2.92mm Female Radius
Right Angle Adapter, Up To 40 GHz

RF Adapters Technical Data Sheet PE91070

Configuration
• 2.92mm Male Connector 1 • 50 Ohm
• 2.92mm Female Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.5:1 up to 40 GHz • Contact plating according to ASTM B-488
• 2.92mm interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• Epoxy captivation
Applications
• General Purpose Test

.
Description
Pasternack’s PE91070 2.92mm male to 2.92mm female radius right angle adapter is part of our full line of RF components
available for same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm
connectors. Our 2.92mm to 2.92mm adapter has a male to female gender configuration. PE91070 2.92mm male to 2.92mm
female adapter operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum. This radius right
angle 2.92mm to 2.92mm adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.5:1
Insertion Loss 0.5 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
High Potential Voltage 1,000 Vrms
at 5 MHz
Corona Discharge 375 Vrms
at 70,000 ft
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Female Radius Right Angle Adapter, Up To 40 GHz PE91070
