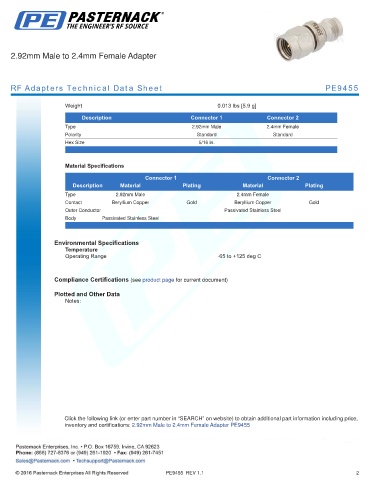

Page 258 - RF Adapter Datasheets
P. 258
2.92mm Male to 2.4mm Female Adapter
RF Adapters Technical Data Sheet PE9455
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type 2.92mm Male 2.4mm Female
Polarity Standard Standard
Hex Size 5/16 in.
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Male 2.4mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.4mm Female Adapter PE9455
PE9455 REV 1.1 2
