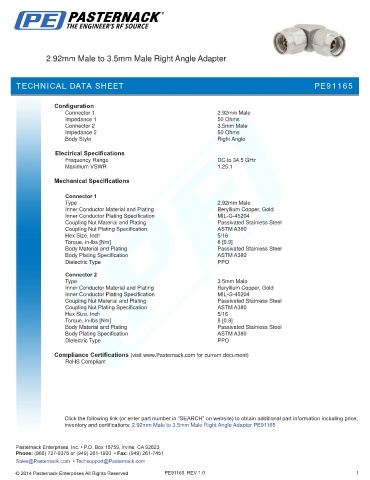

2.92mm Male to 3.5mm Male Right Angle Adapter
TECHNICAL DATA SHEET PE91165
Configuration
Connector 1 2.92mm Male
Impedance 1 50 Ohms
Connector 2 3.5mm Male
Impedance 2 50 Ohms
Body Style Right Angle
Electrical Specifications
Frequency Range DC to 34.5 GHz
Maximum VSWR 1.25:1
Mechanical Specifications
.
Connector 1
Type 2.92mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM A380
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Connector 2
Type 3.5mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM A380
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 3.5mm Male Right Angle Adapter PE91165
PE91165 REV 1.0 1
