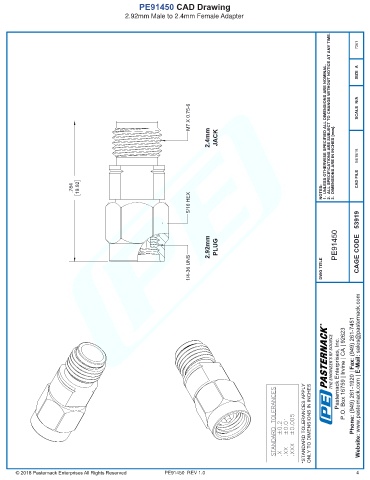

PE91450 CAD Drawing
2.92mm Male to 2.4mm Female Adapter

7361

SIZE A

M7 X 0.75-6 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

2.4mm JACK 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 04/10/18

3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
.784 19.92 NOTES:
5/16 HEX

2.92mm PLUG PE91450 CAGE CODE 53919

1/4-36 UNS DWG TITLE

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91450 REV 1.0 4
