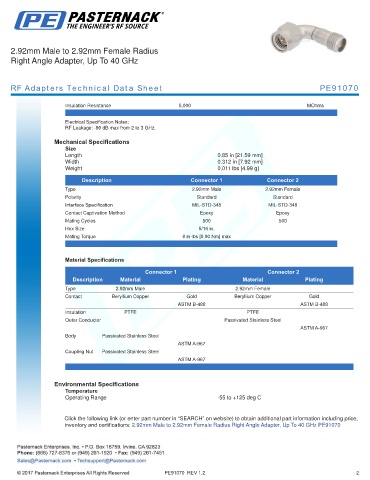

Page 262 - RF Adapter Datasheets
P. 262
2.92mm Male to 2.92mm Female Radius
Right Angle Adapter, Up To 40 GHz
RF Adapters Technical Data Sheet PE91070
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
RF Leakage: -90 dB max from 2 to 3 GHz.
Mechanical Specifications
Size
Length 0.85 in [21.59 mm]
Width 0.312 in [7.92 mm]
Weight 0.011 lbs [4.99 g]
.
Description Connector 1 Connector 2
Type 2.92mm Male 2.92mm Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
Mating Cycles 500 500
Hex Size 5/16 in.
Mating Torque 8 in-lbs [0.90 Nm] max
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Male 2.92mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
ASTM A-967
Body Passivated Stainless Steel
ASTM A-967
Coupling Nut Passivated Stainless Steel
ASTM A-967
. .
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Female Radius Right Angle Adapter, Up To 40 GHz PE91070
PE91070 REV 1.2 2
