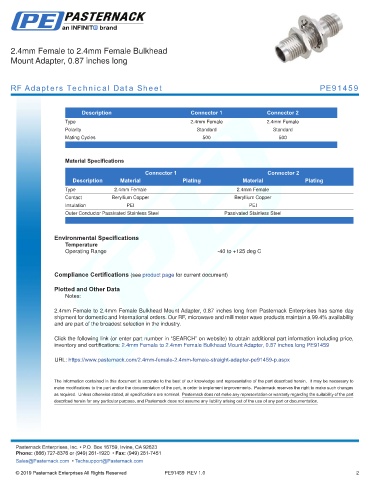

Page 114 - RF Adapter Datasheets

2.4mm Female to 2.4mm Female Bulkhead
Mount Adapter, 0.87 inches long

RF Adapters Technical Data Sheet PE91459

.
Description Connector 1 Connector 2
Type 2.4mm Female 2.4mm Female
Polarity Standard Standard
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm Female 2.4mm Female
Contact Beryllium Copper Beryllium Copper
Insulation PEI PEI
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -40 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

2.4mm Female to 2.4mm Female Bulkhead Mount Adapter, 0.87 inches long from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to 2.4mm Female Bulkhead Mount Adapter, 0.87 inches long PE91459

URL: https://www.pasternack.com/2.4mm-female-2.4mm-female-straight-adapter-pe91459-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91459 REV 1.0 2
