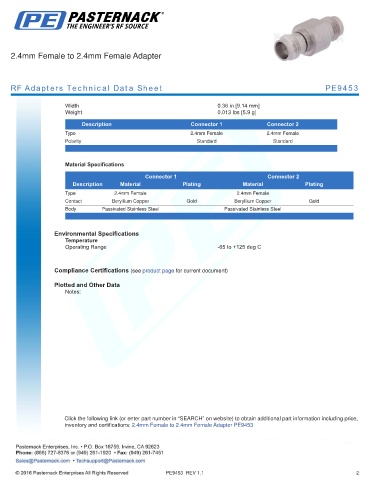

2.4mm Female to 2.4mm Female Adapter
RF Adapters Technical Data Sheet PE9453
Width 0.36 in [9.14 mm]
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type 2.4mm Female 2.4mm Female
Polarity Standard Standard
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm Female 2.4mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to 2.4mm Female Adapter PE9453
