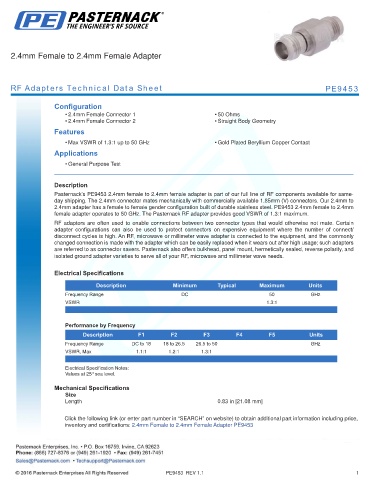

2.4mm Female to 2.4mm Female Adapter
RF Adapters Technical Data Sheet PE9453
Configuration
• 2.4mm Female Connector 1 • 50 Ohms
• 2.4mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 50 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9453 2.4mm female to 2.4mm female adapter is part of our full line of RF components available for same-
day shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our 2.4mm to
2.4mm adapter has a female to female gender configuration built of durable stainless steel. PE9453 2.4mm female to 2.4mm
female adapter operates to 50 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
VSWR 1.3:1
. .
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 26.5 26.5 to 50 GHz
VSWR, Max 1.1:1 1.2:1 1.3:1
.
Electrical Specification Notes:
Values at 25° sea level.
Mechanical Specifications
Size
Length 0.83 in [21.08 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to 2.4mm Female Adapter PE9453
PE9453 REV 1.1 1
