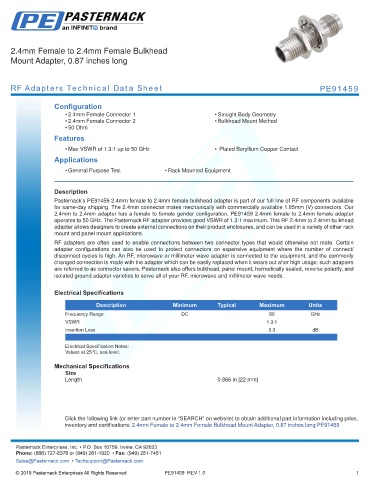

2.4mm Female to 2.4mm Female Bulkhead
Mount Adapter, 0.87 inches long

RF Adapters Technical Data Sheet PE91459

Configuration
• 2.4mm Female Connector 1 • Straight Body Geometry
• 2.4mm Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.3:1 up to 50 GHz • Plated Beryllium Copper Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE91459 2.4mm female to 2.4mm female bulkhead adapter is part of our full line of RF components available
for same-day shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our
2.4mm to 2.4mm adapter has a female to female gender configuration. PE91459 2.4mm female to 2.4mm female adapter
operates to 50 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF 2.4mm to 2.4mm bulkhead
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
VSWR 1.3:1
Insertion Loss 0.3 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.866 in [22 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to 2.4mm Female Bulkhead Mount Adapter, 0.87 inches long PE91459
-
