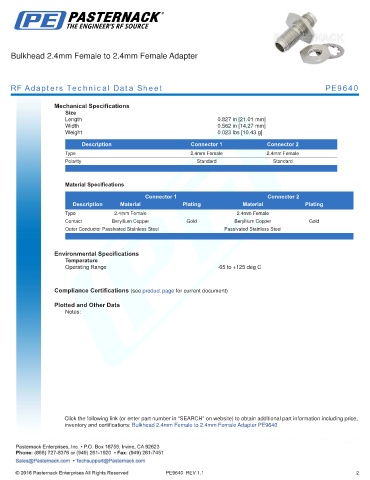

Bulkhead 2.4mm Female to 2.4mm Female Adapter

RF Adapters Technical Data Sheet PE9640

Mechanical Specifications
Size
Length 0.827 in [21.01 mm]
Width 0.562 in [14.27 mm]
Weight 0.023 lbs [10.43 g]
.
Description Connector 1 Connector 2
Type 2.4mm Female 2.4mm Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm Female 2.4mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 2.4mm Female to 2.4mm Female Adapter PE9640

PE9640 REV 1.1 2
