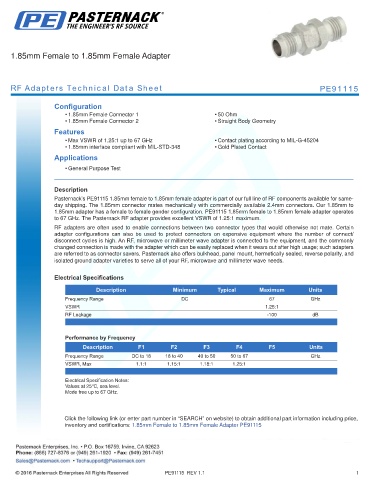

1.85mm Female to 1.85mm Female Adapter

RF Adapters Technical Data Sheet PE91115

Configuration
• 1.85mm Female Connector 1 • 50 Ohm
• 1.85mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 67 GHz • Contact plating according to MIL-G-45204
• 1.85mm interface compliant with MIL-STD-348 • Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91115 1.85mm female to 1.85mm female adapter is part of our full line of RF components available for same-
day shipping. The 1.85mm connector mates mechanically with commercially available 2.4mm connectors. Our 1.85mm to
1.85mm adapter has a female to female gender configuration. PE91115 1.85mm female to 1.85mm female adapter operates
to 67 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 67 GHz
VSWR 1.25:1
RF Leakage -100 dB
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 40 40 to 50 50 to 67 GHz
VSWR, Max 1.1:1 1.15:1 1.18:1 1.25:1
.
Electrical Specification Notes:
Values at 25°C, sea level.
Mode free up to 67 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to 1.85mm Female Adapter PE91115

PE91115 REV 1.1 1
