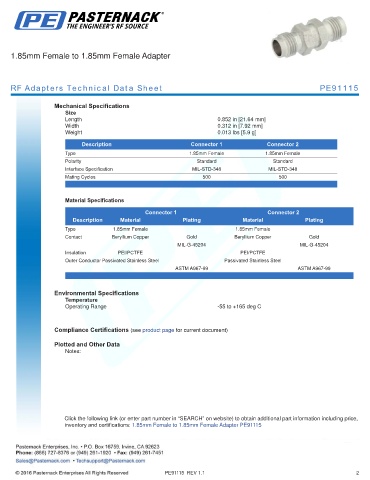

1.85mm Female to 1.85mm Female Adapter

RF Adapters Technical Data Sheet PE91115

Mechanical Specifications
Size
Length 0.852 in [21.64 mm]
Width 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type 1.85mm Female 1.85mm Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Female 1.85mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PEI/PCTFE PEI/PCTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
ASTM A967-99 ASTM A967-99
. .

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to 1.85mm Female Adapter PE91115

PE91115 REV 1.1 2
