Precision 2.92mm Female to 3.5mm Female Right Angle Adapter

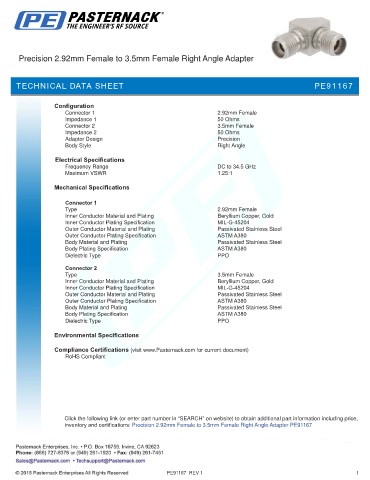

TECHNICAL DATA SHEET PE91167

Configuration
Connector 1 2.92mm Female
Impedance 1 50 Ohms
Connector 2 3.5mm Female
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Right Angle

Electrical Specifications
Frequency Range DC to 34.5 GHz
Maximum VSWR 1.25:1

Mechanical Specifications
.
Connector 1
Type 2.92mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification ASTM A380
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Connector 2
Type 3.5mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification ASTM A380
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO

Environmental Specifications

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.92mm Female to 3.5mm Female Right Angle Adapter PE91167

PE91167 REV 1 1
