2.92mm Female to 3.5mm Female Adapter

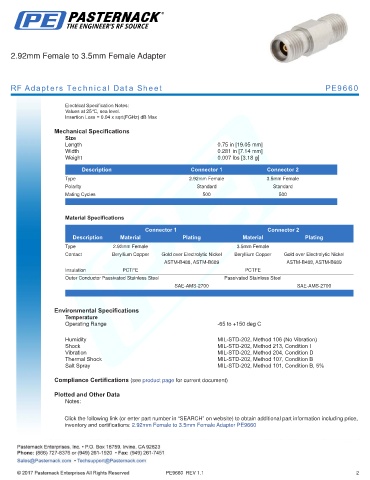

RF Adapters Technical Data Sheet PE9660

Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss = 0.04 x sqrt(FGHz) dB Max
Mechanical Specifications
Size
Length 0.75 in [19.05 mm]
Width 0.281 in [7.14 mm]
Weight 0.007 lbs [3.18 g]
.
Description Connector 1 Connector 2
Type 2.92mm Female 3.5mm Female
Polarity Standard Standard
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Female 3.5mm Female
Contact Beryllium Copper Gold over Electrolytic Nickel Beryllium Copper Gold over Electrolytic Nickel
ASTM-B488, ASTM-B689 ASTM-B488, ASTM-B689
Insulation PCTFE PCTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
SAE-AMS-2700 SAE-AMS-2700
. .

Environmental Specifications
Temperature
Operating Range -65 to +150 deg C
.
Humidity MIL-STD-202, Method 106 (No Vibration)
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B, 5%

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 3.5mm Female Adapter PE9660

PE9660 REV 1.1 2
