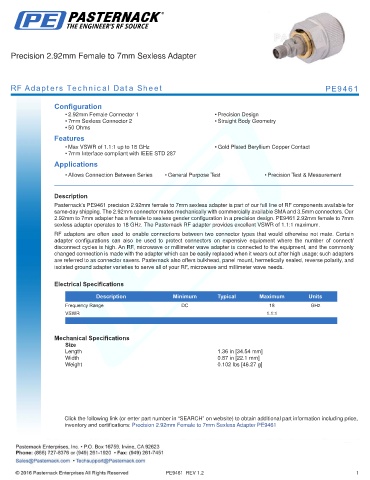

Precision 2.92mm Female to 7mm Sexless Adapter

RF Adapters Technical Data Sheet PE9461

Configuration
• 2.92mm Female Connector 1 • Precision Design
• 7mm Sexless Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.1:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• 7mm Interface compliant with IEEE STD 287
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9461 precision 2.92mm female to 7mm sexless adapter is part of our full line of RF components available for
same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our
2.92mm to 7mm adapter has a female to sexless gender configuration in a precision design. PE9461 2.92mm female to 7mm
sexless adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.1:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.1:1
. .

Mechanical Specifications
Size
Length 1.36 in [34.54 mm]
Width 0.87 in [22.1 mm]
Weight 0.102 lbs [46.27 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.92mm Female to 7mm Sexless Adapter PE9461

PE9461 REV 1.2 1
