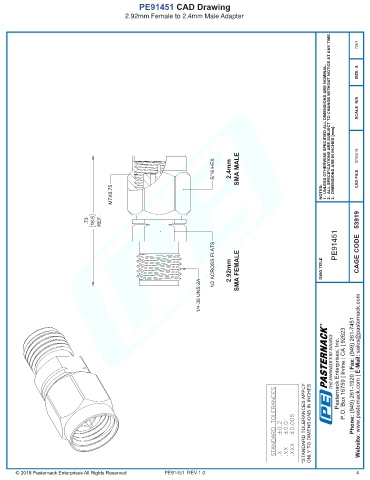

PE91451 CAD Drawing
2.92mm Female to 2.4mm Male Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

5/16 HEX 2.4mm SMA MALE 3. DIMENSIONS ARE IN INCHES [mm]. 07/03/18 CAD FILE

M7X0.75 NOTES:

.73 18.5 REF. CAGE CODE 53919

1/2 ACROSS FLATS 2.92mm SMA FEMALE DWG TITLE PE91451

1/4-36 UNS-2A

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91451 REV 1.0 4
