P. 310

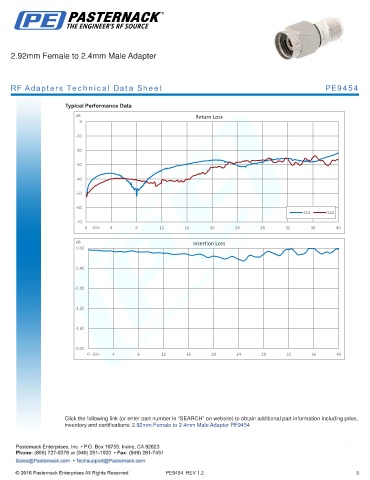

2.92mm Female to 2.4mm Male Adapter
RF Adapters Technical Data Sheet PE9454
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0 GHz 4 8 12 16 20 24 28 32 36 40
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0 GHz 4 8 12 16 20 24 28 32 36 40
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 2.4mm Male Adapter PE9454
PE9454 REV 1.2 3
