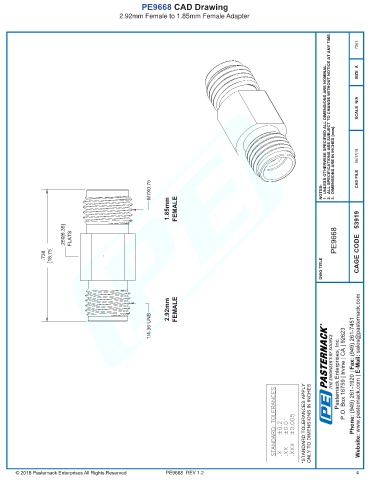

PE9668 CAD Drawing
2.92mm Female to 1.85mm Female Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 05/17/18

M7X0.75 NOTES: CAD FILE

1.85mm FEMALE

.250[6.35] FLATS

PE9668 CAGE CODE 53919
.738 18.75
DWG TITLE

2.92mm FEMALE

1/4-36 UNS R
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9668 REV 1.2 4
