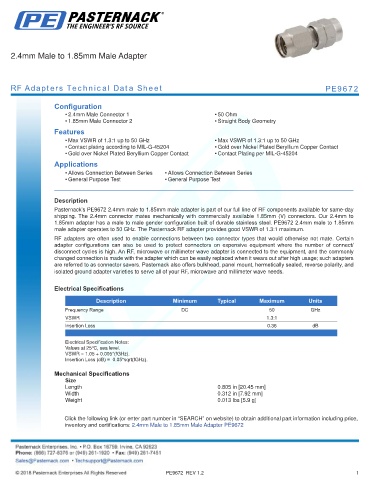

2.4mm Male to 1.85mm Male Adapter
RF Adapters Technical Data Sheet PE9672
Configuration
• 2.4mm Male Connector 1 • 50 Ohm
• 1.85mm Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 50 GHz • Max VSWR of 1.3:1 up to 50 GHz
• Contact plating according to MIL-G-45204 • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9672 2.4mm male to 1.85mm male adapter is part of our full line of RF components available for same-day
shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our 2.4mm to
1.85mm adapter has a male to male gender configuration built of durable stainless steel. PE9672 2.4mm male to 1.85mm
male adapter operates to 50 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
VSWR 1.3:1
Insertion Loss 0.36 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
VSWR = 1.05 + 0.005*(fGHz).
Insertion Loss (dB) = 0.05*sqrt(fGHz).
Mechanical Specifications
Size
Length 0.805 in [20.45 mm]
Width 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Male to 1.85mm Male Adapter PE9672
PE9672 REV 1.2 1
