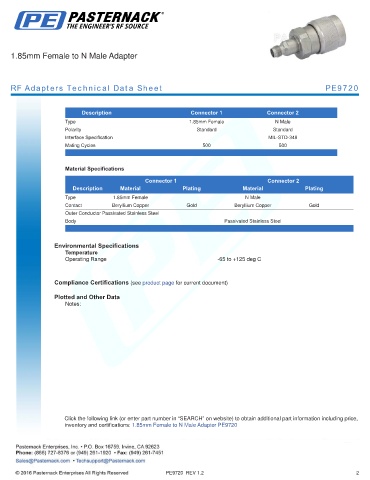

1.85mm Female to N Male Adapter
RF Adapters Technical Data Sheet PE9720
.
Description Connector 1 Connector 2
Type 1.85mm Female N Male
Polarity Standard Standard
Interface Specification MIL-STD-348
Mating Cycles 500 500
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Female N Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to N Male Adapter PE9720
PE9720 REV 1.2 2
