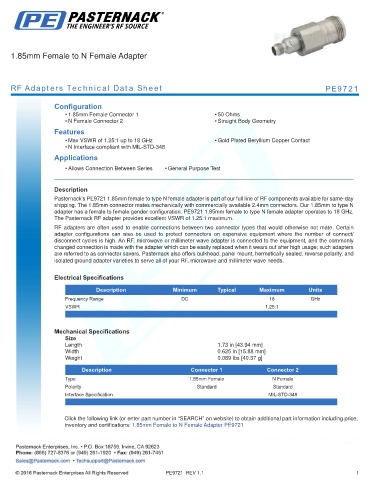

1.85mm Female to N Female Adapter

RF Adapters Technical Data Sheet PE9721

Configuration
• 1.85mm Female Connector 1 • 50 Ohms
• N Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• N Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9721 1.85mm female to type N female adapter is part of our full line of RF components available for same-day
shipping. The 1.85mm connector mates mechanically with commercially available 2.4mm connectors. Our 1.85mm to type N
adapter has a female to female gender configuration. PE9721 1.85mm female to type N female adapter operates to 18 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
. .

Mechanical Specifications
Size
Length 1.73 in [43.94 mm]
Width 0.625 in [15.88 mm]
Weight 0.089 lbs [40.37 g]
.
Description Connector 1 Connector 2
Type 1.85mm Female N Female
Polarity Standard Standard
Interface Specification MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to N Female Adapter PE9721
