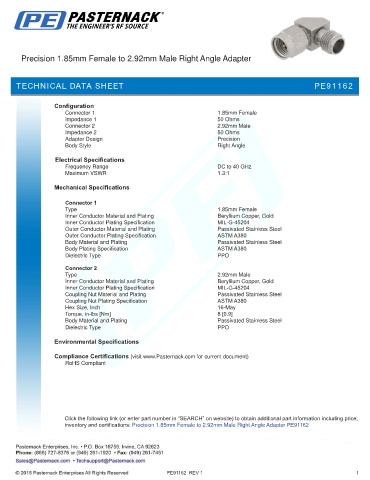

Precision 1.85mm Female to 2.92mm Male Right Angle Adapter

TECHNICAL DATA SHEET PE91162

Configuration
Connector 1 1.85mm Female
Impedance 1 50 Ohms
Connector 2 2.92mm Male
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Right Angle

Electrical Specifications
Frequency Range DC to 40 GHz
Maximum VSWR 1.3:1

Mechanical Specifications
.
Connector 1
Type 1.85mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification ASTM A380
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Connector 2
Type 2.92mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM A380
Hex Size, Inch 16-May
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Dielectric Type PPO

Environmental Specifications

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 1.85mm Female to 2.92mm Male Right Angle Adapter PE91162
