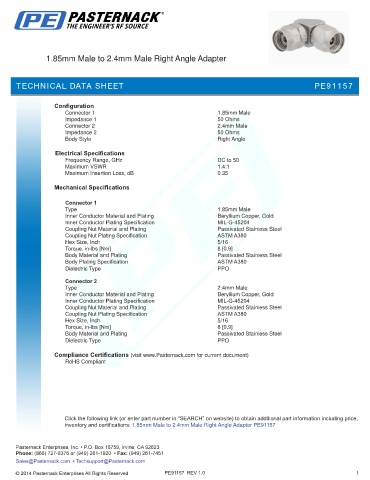

1.85mm Male to 2.4mm Male Right Angle Adapter
TECHNICAL DATA SHEET PE91157
Configuration
Connector 1 1.85mm Male
Impedance 1 50 Ohms
Connector 2 2.4mm Male
Impedance 2 50 Ohms
Body Style Right Angle
Electrical Specifications
Frequency Range, GHz DC to 50
Maximum VSWR 1.4:1
Maximum Insertion Loss, dB 0.35
Mechanical Specifications
.
Connector 1
Type 1.85mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM A380
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Connector 2
Type 2.4mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification ASTM A380
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Dielectric Type PPO
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 2.4mm Male Right Angle Adapter PE91157
