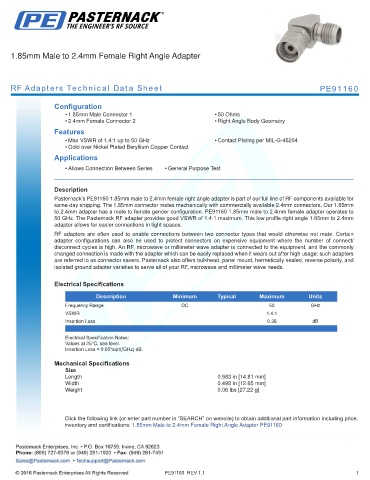

1.85mm Male to 2.4mm Female Right Angle Adapter

RF Adapters Technical Data Sheet PE91160

Configuration
• 1.85mm Male Connector 1 • 50 Ohms
• 2.4mm Female Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.4:1 up to 50 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91160 1.85mm male to 2.4mm female right angle adapter is part of our full line of RF components available for
same-day shipping. The 1.85mm connector mates mechanically with commercially available 2.4mm connectors. Our 1.85mm
to 2.4mm adapter has a male to female gender configuration. PE91160 1.85mm male to 2.4mm female adapter operates to
50 GHz. The Pasternack RF adapter provides good VSWR of 1.4:1 maximum. This low profile right angle 1.85mm to 2.4mm
adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
VSWR 1.4:1
Insertion Loss 0.36 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss = 0.05*sqrt(fGHz) dB.

Mechanical Specifications
Size
Length 0.583 in [14.81 mm]
Width 0.498 in [12.65 mm]
Weight 0.06 lbs [27.22 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 2.4mm Female Right Angle Adapter PE91160

PE91160 REV 1.1 1
