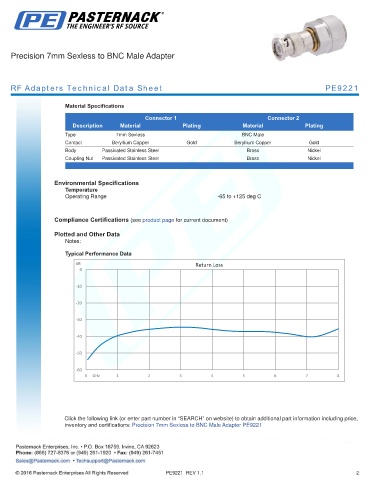

Precision 7mm Sexless to BNC Male Adapter

RF Adapters Technical Data Sheet PE9221

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 7mm Sexless BNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Brass Nickel
Coupling Nut Passivated Stainless Steel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50

-60
0 GHz 1 2 3 4 5 6 7 8

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 7mm Sexless to BNC Male Adapter PE9221
