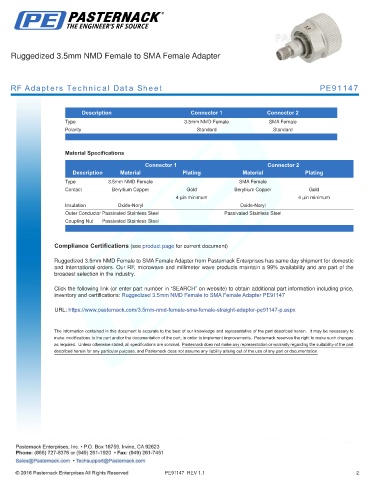

Ruggedized 3.5mm NMD Female to SMA Female Adapter

RF Adapters Technical Data Sheet PE91147

.
Description Connector 1 Connector 2
Type 3.5mm NMD Female SMA Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 3.5mm NMD Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
4 µin minimum 4 µin minimum
Insulation Oxide-Noryl Oxide-Noryl
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Compliance Certifications (see product page for current document)

Ruggedized 3.5mm NMD Female to SMA Female Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Ruggedized 3.5mm NMD Female to SMA Female Adapter PE91147

URL: https://www.pasternack.com/3.5mm-nmd-female-sma-female-straight-adapter-pe91147-p.aspx

PE91147 REV 1.1 2
