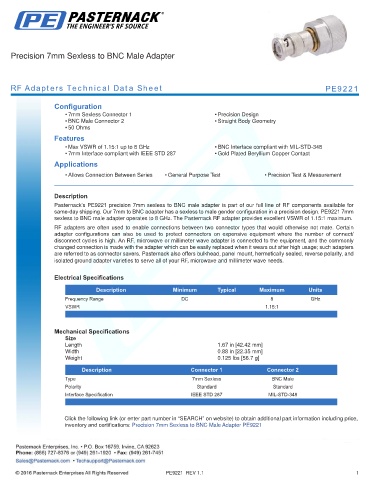

Precision 7mm Sexless to BNC Male Adapter

RF Adapters Technical Data Sheet PE9221

Configuration
• 7mm Sexless Connector 1 • Precision Design
• BNC Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 8 GHz • BNC Interface compliant with MIL-STD-348
• 7mm Interface compliant with IEEE STD 287 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9221 precision 7mm sexless to BNC male adapter is part of our full line of RF components available for
same-day shipping. Our 7mm to BNC adapter has a sexless to male gender configuration in a precision design. PE9221 7mm
sexless to BNC male adapter operates to 8 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.67 in [42.42 mm]
Width 0.88 in [22.35 mm]
Weight 0.125 lbs [56.7 g]
.
Description Connector 1 Connector 2
Type 7mm Sexless BNC Male
Polarity Standard Standard
Interface Specification IEEE STD 287 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 7mm Sexless to BNC Male Adapter PE9221

PE9221 REV 1.1 1
