1.85mm Male to 1.85mm Male Adapter

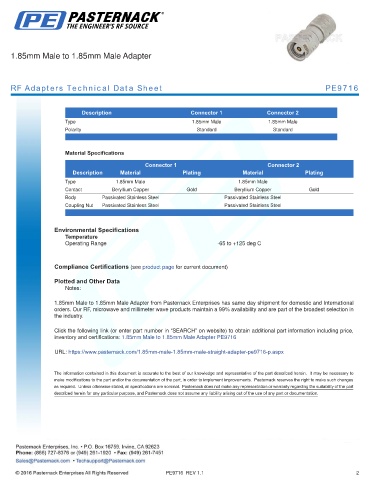

RF Adapters Technical Data Sheet PE9716

.
Description Connector 1 Connector 2
Type 1.85mm Male 1.85mm Male
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Male 1.85mm Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

1.85mm Male to 1.85mm Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 1.85mm Male Adapter PE9716

URL: https://www.pasternack.com/1.85mm-male-1.85mm-male-straight-adapter-pe9716-p.aspx

PE9716 REV 1.1 2
