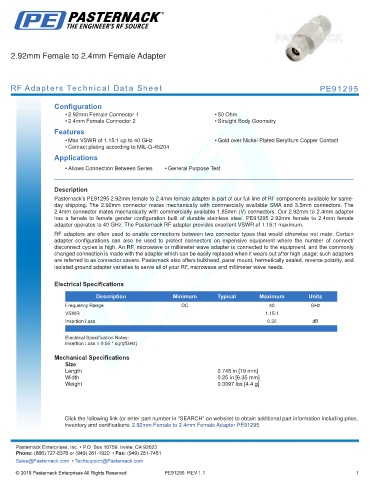

2.92mm Female to 2.4mm Female Adapter
RF Adapters Technical Data Sheet PE91295
Configuration
• 2.92mm Female Connector 1 • 50 Ohm
• 2.4mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.15:1 up to 40 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91295 2.92mm female to 2.4mm female adapter is part of our full line of RF components available for same-
day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. The
2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our 2.92mm to 2.4mm adapter
has a female to female gender configuration built of durable stainless steel. PE91295 2.92mm female to 2.4mm female
adapter operates to 40 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.15:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Insertion Loss = 0.05 * sqrt(fGHz)
Mechanical Specifications
Size
Length 0.748 in [19 mm]
Width 0.25 in [6.35 mm]
Weight 0.0097 lbs [4.4 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 2.4mm Female Adapter PE91295
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE91295 REV 1.1 1
