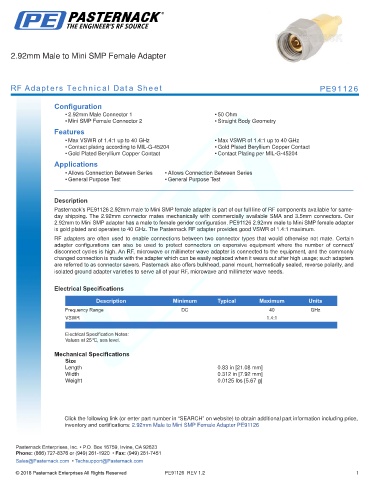

2.92mm Male to Mini SMP Female Adapter
RF Adapters Technical Data Sheet PE91126
Configuration
• 2.92mm Male Connector 1 • 50 Ohm
• Mini SMP Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.4:1 up to 40 GHz • Max VSWR of 1.4:1 up to 40 GHz
• Contact plating according to MIL-G-45204 • Gold Plated Beryllium Copper Contact
• Gold Plated Beryllium Copper Contact • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE91126 2.92mm male to Mini SMP female adapter is part of our full line of RF components available for same-
day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our
2.92mm to Mini SMP adapter has a male to female gender configuration. PE91126 2.92mm male to Mini SMP female adapter
is gold plated and operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.4:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.4:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.83 in [21.08 mm]
Width 0.312 in [7.92 mm]
Weight 0.0125 lbs [5.67 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to Mini SMP Female Adapter PE91126
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE91126 REV 1.2 1
