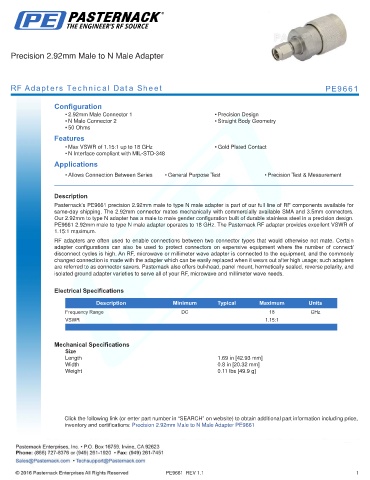

Precision 2.92mm Male to N Male Adapter

RF Adapters Technical Data Sheet PE9661

Configuration
• 2.92mm Male Connector 1 • Precision Design
• N Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold Plated Contact
• N Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9661 precision 2.92mm male to type N male adapter is part of our full line of RF components available for
same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors.
Our 2.92mm to type N adapter has a male to male gender configuration built of durable stainless steel in a precision design.
PE9661 2.92mm male to type N male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of
1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.69 in [42.93 mm]
Width 0.8 in [20.32 mm]
Weight 0.11 lbs [49.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.92mm Male to N Male Adapter PE9661

PE9661 REV 1.1 1
