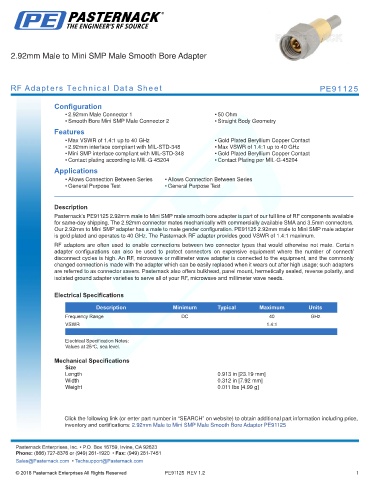

2.92mm Male to Mini SMP Male Smooth Bore Adapter

RF Adapters Technical Data Sheet PE91125

Configuration
• 2.92mm Male Connector 1 • 50 Ohm
• Smooth Bore Mini SMP Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.4:1 up to 40 GHz • Gold Plated Beryllium Copper Contact
• 2.92mm interface compliant with MIL-STD-348 • Max VSWR of 1.4:1 up to 40 GHz
• Mini SMP interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE91125 2.92mm male to Mini SMP male smooth bore adapter is part of our full line of RF components available
for same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors.
Our 2.92mm to Mini SMP adapter has a male to male gender configuration. PE91125 2.92mm male to Mini SMP male adapter
is gold plated and operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.4:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.4:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.913 in [23.19 mm]
Width 0.312 in [7.92 mm]
Weight 0.011 lbs [4.99 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to Mini SMP Male Smooth Bore Adapter PE91125
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91125 REV 1.2 1
