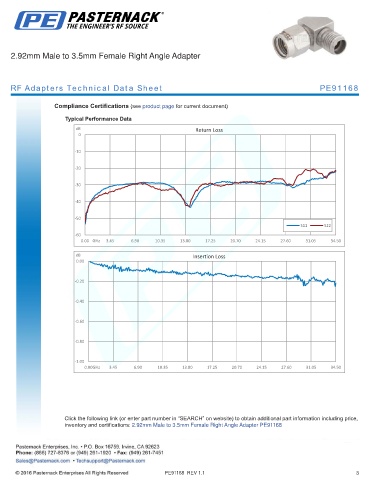

2.92mm Male to 3.5mm Female Right Angle Adapter
RF Adapters Technical Data Sheet PE91168
Compliance Certifications (see product page for current document)
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 3.5mm Female Right Angle Adapter PE91168
PE91168 REV 1.1 3
