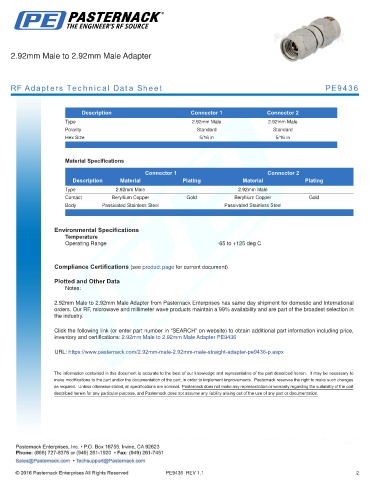

2.92mm Male to 2.92mm Male Adapter

RF Adapters Technical Data Sheet PE9436

.
Description Connector 1 Connector 2
Type 2.92mm Male 2.92mm Male
Polarity Standard Standard
Hex Size 5/16 in 5/16 in
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Male 2.92mm Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

2.92mm Male to 2.92mm Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Male Adapter PE9436

URL: https://www.pasternack.com/2.92mm-male-2.92mm-male-straight-adapter-pe9436-p.aspx

PE9436 REV 1.1 2
