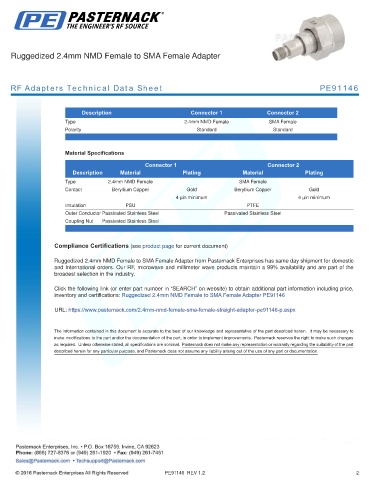

Page 198 - RF Adapter Datasheets

Ruggedized 2.4mm NMD Female to SMA Female Adapter

RF Adapters Technical Data Sheet PE91146

.
Description Connector 1 Connector 2
Type 2.4mm NMD Female SMA Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm NMD Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
4 µin minimum 4 µin minimum
Insulation PSU PTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Compliance Certifications (see product page for current document)

Ruggedized 2.4mm NMD Female to SMA Female Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Ruggedized 2.4mm NMD Female to SMA Female Adapter PE91146
