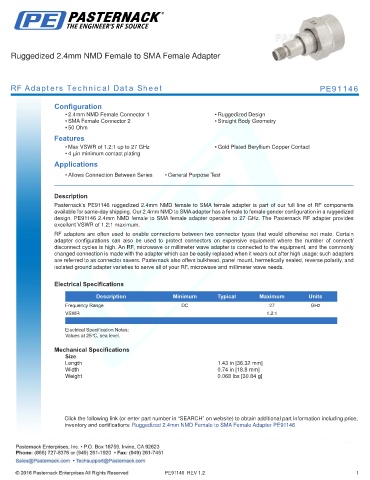

Ruggedized 2.4mm NMD Female to SMA Female Adapter

RF Adapters Technical Data Sheet PE91146

Configuration
• 2.4mm NMD Female Connector 1 • Ruggedized Design
• SMA Female Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.2:1 up to 27 GHz • Gold Plated Beryllium Copper Contact
• 4 µin minimum contact plating
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE91146 ruggedized 2.4mm NMD female to SMA female adapter is part of our full line of RF components
available for same-day shipping. Our 2.4mm NMD to SMA adapter has a female to female gender configuration in a ruggedized
design. PE91146 2.4mm NMD female to SMA female adapter operates to 27 GHz. The Pasternack RF adapter provides
excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.43 in [36.32 mm]
Width 0.74 in [18.8 mm]
Weight 0.068 lbs [30.84 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Ruggedized 2.4mm NMD Female to SMA Female Adapter PE91146

PE91146 REV 1.2 1
