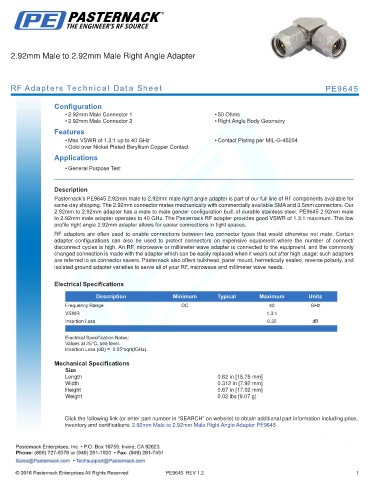

2.92mm Male to 2.92mm Male Right Angle Adapter
RF Adapters Technical Data Sheet PE9645
Configuration
• 2.92mm Male Connector 1 • 50 Ohms
• 2.92mm Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.3:1 up to 40 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9645 2.92mm male to 2.92mm male right angle adapter is part of our full line of RF components available for
same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our
2.92mm to 2.92mm adapter has a male to male gender configuration built of durable stainless steel. PE9645 2.92mm male
to 2.92mm male adapter operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This low
profile right angle 2.92mm adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.3:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).
Mechanical Specifications
Size
Length 0.62 in [15.75 mm]
Width 0.312 in [7.92 mm]
Height 0.67 in [17.02 mm]
Weight 0.02 lbs [9.07 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Male Right Angle Adapter PE9645
PE9645 REV 1.2 1
