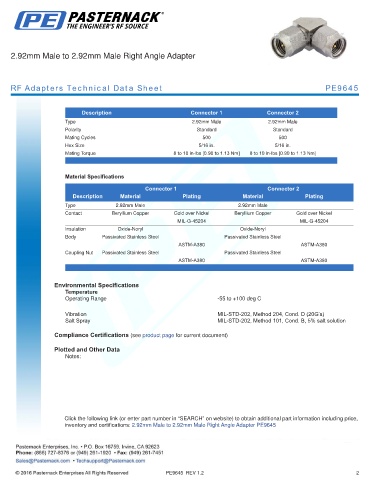

2.92mm Male to 2.92mm Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9645

.
Description Connector 1 Connector 2
Type 2.92mm Male 2.92mm Male
Polarity Standard Standard
Mating Cycles 500 500
Hex Size 5/16 in. 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm] 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Male 2.92mm Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation Oxide-Noryl Oxide-Noryl
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM-A380 ASTM-A380
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
ASTM-A380 ASTM-A380
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.
Vibration MIL-STD-202, Method 204, Cond. D (20G’s)
Salt Spray MIL-STD-202, Method 101, Cond. B, 5% salt solution

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Male Right Angle Adapter PE9645

PE9645 REV 1.2 2
