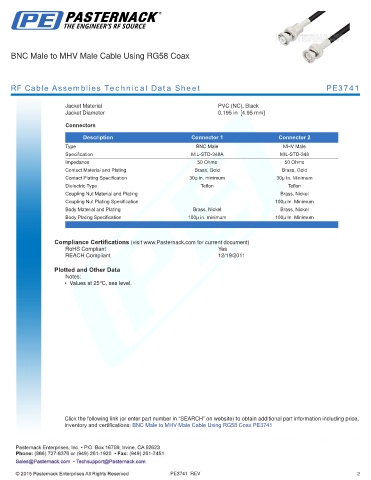

BNC Male to MHV Male Cable Using RG58 Coax
RF Cable Assemblies Technical Data Sheet PE3741
Jacket Material PVC (NC), Black
Jacket Diameter 0.195 in [4.95 mm]
Connectors
Description Connector 1 Connector 2
Type BNC Male MHV Male
Specification MIL-STD-348A MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30µ in. minimum 30µ In. Minimum
Dielectric Type Teflon Teflon
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ In. Minimum
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ In. Minimum
.
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/19/2011
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to MHV Male Cable Using RG58 Coax PE3741
PE3741 REV 2
