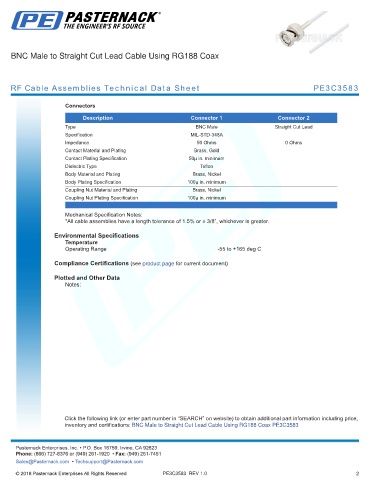

BNC Male to Straight Cut Lead Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3583

Connectors

Description Connector 1 Connector 2
Type BNC Male Straight Cut Lead
Specification MIL-STD-348A
Impedance 50 Ohms 0 Ohms
Contact Material and Plating Brass, Gold
Contact Plating Specification 50µ in. minimum
Dielectric Type Teflon
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to Straight Cut Lead Cable Using RG188 Coax PE3C3583
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3583 REV 1.0 2
