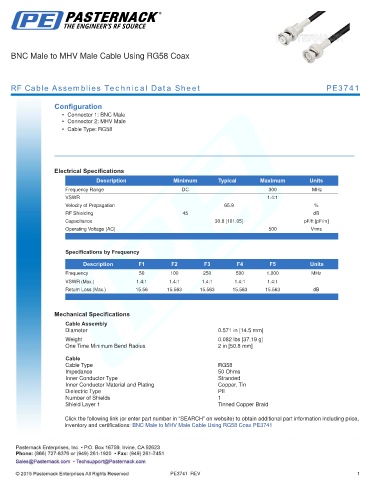

BNC Male to MHV Male Cable Using RG58 Coax





     RF Cable Assemblies Technical Data Sheet                                                                PE3741


                   Configuration
                      •  Connector 1: BNC Male
                      •  Connector 2: MHV Male
                      •  Cable Type: RG58




                   .
                   Electrical Specifications
                                 Description              Minimum        Typical       Maximum         Units
                       Frequency Range                       DC                           300            MHz
                       VSWR                                                              1.4:1
                       Velocity of Propagation                             65.9                          %
                       RF Shielding                          45                                         dB
                       Capacitance                                      30.8 [101.05]                pF/ft [pF/m]
                       Operating Voltage (AC)                                             500           Vrms
                       .

                       Specifications by Frequency

                            Description        F1         F2        F3         F4         F5           Units
                       Frequency               50        100        250        500       1,000          MHz
                       VSWR (Max.)            1.4:1      1.4:1      1.4:1     1.4:1      1.4:1
                       Return Loss (Max.)     15.56     15.563     15.563     15.563     15.563         dB
                       .


                   Mechanical Specifications
                       Cable Assembly
                       Diameter                                          0.571 in [14.5 mm]
                       .
                       Weight                                            0.082 lbs [37.19 g]
                       One Time Minimum Bend Radius                      2 in [50.8 mm]
                       Cable
                       Cable Type                                        RG58
                       Impedance                                         50 Ohms
                       Inner Conductor Type                              Stranded
                       Inner Conductor Material and Plating              Copper, Tin
                       Dielectric Type                                   PE
                       Number of Shields                                 1
                       Shield Layer 1                                    Tinned Copper Braid

                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: BNC Male to MHV Male Cable Using RG58 Coax PE3741








                                                         PE3741  REV                                                   1
