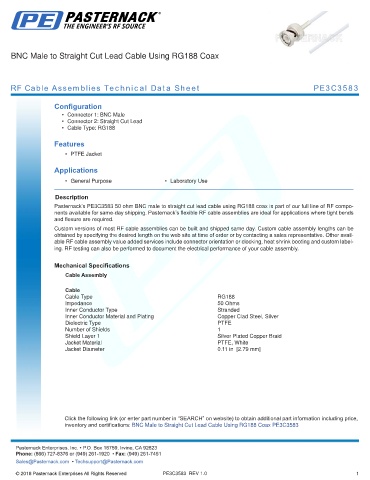

BNC Male to Straight Cut Lead Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3583

Configuration
• Connector 1: BNC Male
• Connector 2: Straight Cut Lead
• Cable Type: RG188

Features
• PTFE Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3583 50 ohm BNC male to straight cut lead cable using RG188 coax is part of our full line of RF compo-
nents available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends
and flexure are required.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type RG188
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material PTFE, White
Jacket Diameter 0.11 in [2.79 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to Straight Cut Lead Cable Using RG188 Coax PE3C3583
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
