1.85mm Female to 2.4mm Female Right Angle Adapter

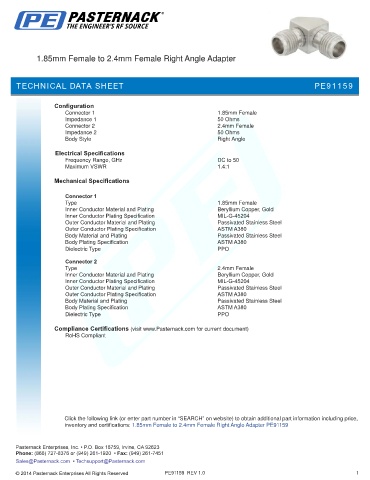

TECHNICAL DATA SHEET PE91159

Configuration
Connector 1 1.85mm Female
Impedance 1 50 Ohms
Connector 2 2.4mm Female
Impedance 2 50 Ohms
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 50
Maximum VSWR 1.4:1
Mechanical Specifications
.
Connector 1
Type 1.85mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification ASTM A380
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO
Connector 2
Type 2.4mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification ASTM A380
Body Material and Plating Passivated Stainless Steel
Body Plating Specification ASTM A380
Dielectric Type PPO

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Female to 2.4mm Female Right Angle Adapter PE91159

PE91159 REV 1.0 1
