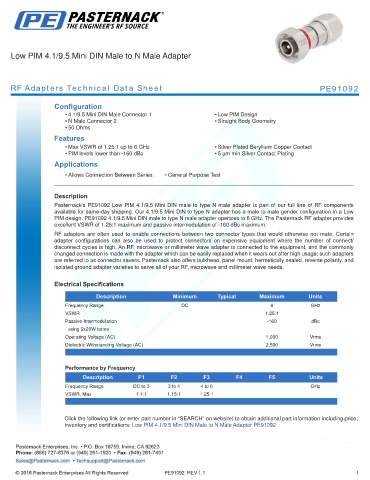

Low PIM 4.1/9.5 Mini DIN Male to N Male Adapter

RF Adapters Technical Data Sheet PE91092

Configuration
• 4.1/9.5 Mini DIN Male Connector 1 • Low PIM Design
• N Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.25:1 up to 6 GHz • Silver Plated Beryllium Copper Contact
• PIM levels lower than -160 dBc • 5 µm min Silver Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE91092 Low PIM 4.1/9.5 Mini DIN male to type N male adapter is part of our full line of RF components
available for same-day shipping. Our 4.1/9.5 Mini DIN to type N adapter has a male to male gender configuration in a Low
PIM design. PE91092 4.1/9.5 Mini DIN male to type N male adapter operates to 6 GHz. The Pasternack RF adapter provides
excellent VSWR of 1.25:1 maximum and passive intermodulation of -160 dBc maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
Passive Intermodulation -160 dBc
using 2x20W tones
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 4 4 to 6 GHz
VSWR, Max 1.1:1 1.15:1 1.25:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.1/9.5 Mini DIN Male to N Male Adapter PE91092

PE91092 REV 1.1 1
