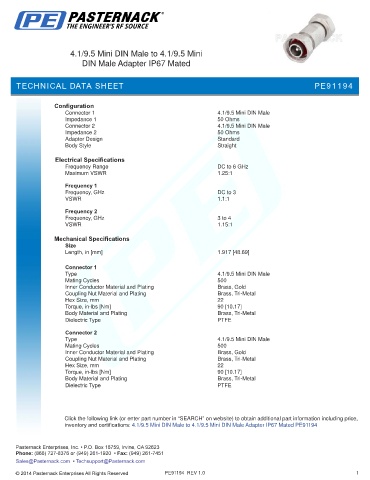

4.1/9.5 Mini DIN Male to 4.1/9.5 Mini
DIN Male Adapter IP67 Mated

TECHNICAL DATA SHEET PE91194

Configuration
Connector 1 4.1/9.5 Mini DIN Male
Impedance 1 50 Ohms
Connector 2 4.1/9.5 Mini DIN Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1

Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1

Frequency 2
Frequency, GHz 3 to 4
VSWR 1.15:1
Mechanical Specifications
Size
Length, in [mm] 1.917 [48.69]
.
Connector 1
Type 4.1/9.5 Mini DIN Male
Mating Cycles 500
Inner Conductor Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 22
Torque, in-lbs [Nm] 90 [10.17]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type 4.1/9.5 Mini DIN Male
Mating Cycles 500
Inner Conductor Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 22
Torque, in-lbs [Nm] 90 [10.17]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Male Adapter IP67 Mated PE91194

PE91194 REV 1.0 1
